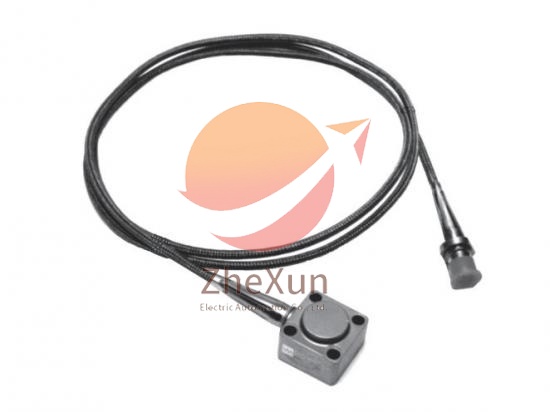

CA303 303-301/144-303-000-011 Piezoelectric Accelerometer

Meggitt Piezoelectric Accelerometer

item no.:
144-303-000-011
lead time:
2-3 weeks
product orgin:
Switzerland
shipping port:
Xiamen
payment:
T/T
Condition:
New

contact now

product details

CA303 Piezoelectric Accelerometer CHARACTERISTICS

Designed for high temperature gas turbine applications
High output of 50 pC/g
850°F(455°C) continuous operation
Improved transverse frequency resonance

CA303 Piezoelectric Accelerometer FEATURES

Frequency response:5 Hz to 8000 Hz
Sensitivity:50 pC/g
Construction:Welded, Inconel 600 stainless steel

CA303 Piezoelectric Accelerometer DESCRIPTION

The CA303 series of high temperature accelerometersare designed specifically for gas turbines applicationsThey feature a rugged design with hermetically sealedconnectors and 1/4" mounting bolts.

An integral mineral insulated cable with stainless steeloverbraid ensures signal integrity even in the mosthostile environments.

The differential output signal minimizes noise pick-updue to electrical ground potentials.A version with side connector is available when anintegral cable is not required.

CA303 Piezoelectric Accelerometer Specifications

Input power requirements: None
Signal transmission: 2 pole system insulated from casing, charge output
Signal processing: Charge amplifier
OPERATING CHARACTERISTICS: at 73°F+9°F(23'C+5C)
Sensitivity (at 120 Hz): 50 pC/g+5%
Dynamic measuring range (random): 0.01 g to 40 g peak
Overload capacity (spikes): Up to 100 g peak
Linearity: +1% overdynamic measuring range
Transverse sensitivity: <5%
Resonant frequency(mounted): 14 kHz nominal

CA303 Piezoelectric Accelerometer Ordering Information

CA303 Version 0XX

VM-SA P/N: 144-303-000-011

VM-SA P/N: 303-031

*Cable Assembly : EC318, EC319

CA303 Version 1XX

VM-SA P/N: 144-303-000-111

VM-SA P/N: 303-02

*Cable Assembly : EC318, EC319

CA303 Version 2XX

144-303-000-211 Not appl. 48±4

144-303-000-221 303-033 81±8

144-303-000-231 Not appl. 45±4

144-303-000-241 303-035 53±4

144-303-000-251 303-039 50±4

144-303-000-261 303-041 78±4

*Cable Assembly : EC334, M011

CA303 Version 3XX

144-303-000-311 303-032 48±4

144-303-000-321 Not appl. 81±8

144-303-000-331 303-034 45±4

144-303-000-341 Not appl. 53±4

144-303-000-351 Not appl. 50±4

144-303-000-361 Not appl. 78±4

*Cable Assembly : EC334, M111
