GE Fanuc IC698CPE010 Processor Module CPU
GE Fanuc IC698CPE010 Processor Module CPU 100% Brand New. 365 days warranty.
item no.:
IS215VCMIH2Clead time:
2-3 work daysproduct orgin:
USAshipping port:
Xiamen Chinapayment:
T/Tmarket price:
$999price range:
1-999/1$color:
Depends on the material

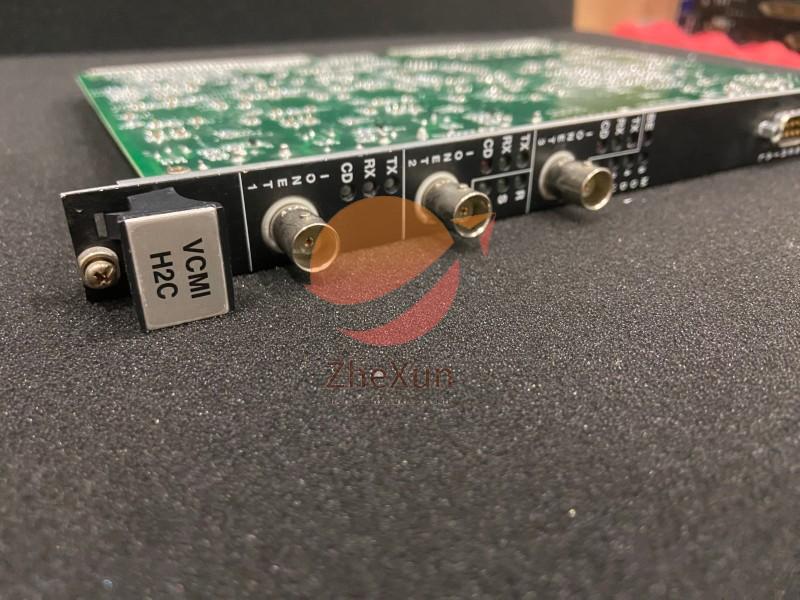

VCMI Bus Master Controller IS215VCMIH2C Functional

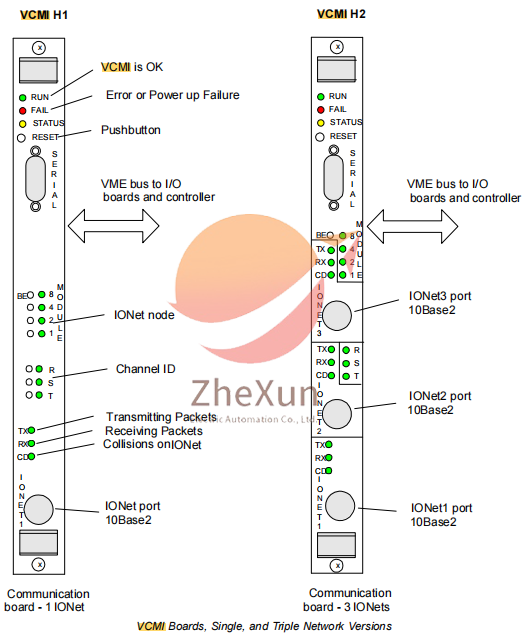

The VME Bus Master Controller (VCMI) board is the communication interface between the controller and the I/O boards, and the communication interface to the system control network, known as IONet. VCMI is also the VME bus master in the control and I/O racks, and manages the IDs for all the boards in the rack and their associated terminal boards.
Operation
Multiple I/O racks can be connected to the IONet, each rack with its own VCMI board.
The following figure shows three simplex system configurations with local and remote I/O using the VCMI.
Diagnostics
The internal +5 V, ±12 V, ±15 V, and ±28 V power supply buses are monitored and alarmed. The alarm settings are configurable and usually set at 3.5%, except for the 28 V supplies, which are set at 5.5%.
Diagnostic signals from the power distribution module (PDM), connected through J301, are also monitored.
These include ground fault and over/under voltage on the P125 V bus, two differential ±5 V dc analog inputs, P28A and PCOM for external monitor circuits, and digital inputs.
GE Fanuc IC698CPE010 Processor Module CPU 100% Brand New. 365 days warranty.
