 /GENERAL ELECTRIC IS200VAICH1DAA Mark VI Analog Input/Output Modules

product categories

New Arrivals

IS200VAICH1DDA IS200VAICH1DDA

GENERAL ELECTRIC IS200VAICH1DAA Mark VI Analog Input/Output Modules

GENERAL ELECTRIC Analog Input/Output Modules

  • item no.:

    IS200VAICH1DDA

  • lead time:

    5-7 DAYS

  • product orgin:

    USA

  • shipping port:

    XIAMEN, CHINA

  • payment:

    T/T

  • color:

    DEPENDING ON THE MATERIAL
  • product details

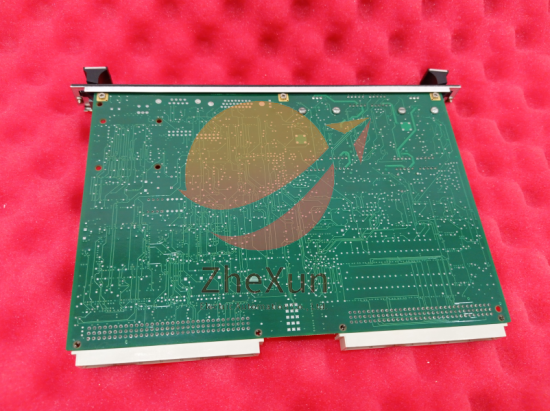

GE IS200VAICH1DDA Analog Input/Output (VAIC)


GE IS200VAICH1DDA Functional Description


        The Analog Input/Output (VAIC) board accepts 20 analog inputs and controls 4 analog outputs. Each terminal board accepts 10 inputs and 2 outputs. Cables connect the terminal board to the VME rack where the VAIC processor board is located. VAIC converts the inputs to digital values and transfers them over the VME backplane to the VCMI board,and then to the controller. For outputs, the VAIC converts digital values to analog currents and drives these through the terminal board into the customer circuit.
         VAIC supports both simplex and triple modular redundant (TMR) applications. When used in a TMR configuration, input signals on the terminal board are fanned out to three VME board racks R, S, and T, each containing a VAIC. Output signals are driven with a proprietary circuit that creates the desired current using all three VAICs. In the event of a hardware failure, the bad VAIC is removed from the output and the remaining two boards continue to produce the correct current. When used in a simplex configuration,the terminal board provides input signals to a single VAIC, which provides all of the current for outputs
GE IS200VAICH1DDA Compatibility


        There are two generations of the VAIC board with corresponding terminal boards. The original VAIC includes all versions prior to and including VAICH1C. VAICH1B is included in this generation. When driving 20 mA outputs these boards support up to 500Ω load resistance at the end of 1000 ft of #18 wire. This generation of board requires terminal board TBAIH1B or earlier for proper operation. They also work properly with all revisions of DTAI terminal boards.

        The newest VAICH1D and any subsequent releases are designed to support higher load resistance for 20 mA outputs drive voltage: up to 18 V is available at the terminal board screw terminals. This permits operation into loads of 800 Ω with 1000 ft of #18 wire with margin. This generation of the board requires TBAIH1C or later.

GE IS200VAICH1DDA Installation


       To install the V-type board
1. Power down the VME processor rack
2. Slide in the board and push the top and bottom levers in with your hands to seat
its edge connectors
3. Tighten the captive screws at the top and bottom of the front panel


hot tags : IS200VAICH1D IS200VAICH1C IS200VAICH1DAA
