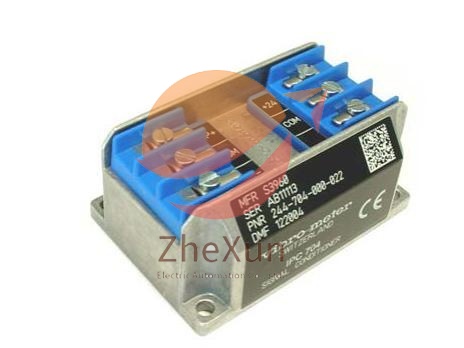

IPC704 244-704-000-042-A2-B01-C10-D20-E2-F10000-G0-H0-I0 Signal conditioner model

Signal conditioner

item no.:
IPC704 244-704-000-0
lead time:
2-3days
product orgin:
Switzerland
payment:
T/T
Condition:
new

product details

IPC704 244-704-000-042-A2-B01-C10-D20-E2-F10000-G0-H0-I0 FEATURES

From the Vibro-Meter® product line
For CAxxx piezoelectric accelerometers and CPxxx dynamic pressure sensors
Configurable high-pass and low-pass filters
Frequency range: 0.5 Hz to 20 kHz
Optional integrator to produce a velocity output
Optional 2-wire current or 3-wire voltage transmission
Certified for use in potentially explosive atmospheres
A range of installation options are available

IPC704 244-704-000-042-A2-B01-C10-D20-E2-F10000-G0-H0-I0 DESCRIPTION

The IPC704 signal conditioner converts the chargebased signal from a piezoelectric-based transducer into a current or a voltage signal. This current or voltage signal is transmitted to the processing electronics via a standard 2-wire or 3-wire transmission cable.
The current modulation technique allows transmission over a distance of up to 1 km. A GSI galvanic separation unit is required for this configuration.
The electronic circuitry of the IPC704 signal conditioner is incorporated into a moulded aluminium enclosure. The signal conditioner has configurable
high-pass and low-pass filters and an optional integrator to give a velocity output. Furthermore, RFI filters protect the input and output against radiofrequency interference and other electromagnetic influences.

IPC704 SPECIFICATIONS

Temperature

Operation : −30 to +85 °C
Storage : −40 to +85 °C
Humidity : Max. 95 % non-condensing.
Note: For operation in a humid environment, ordering option A3 (potted version) should be considered.
Protection rating: IP40
Vibration: 2 g peak between 10 and 500 Hz
Shock acceleration: 15 g peak (half sine, 11 ms duration)
Voltage : 18 to 30 VDC
Current : 25 mA (max)

2-wire current transmission

Dynamic signal : Max. ± 5 mA peak
Standing current : 12 mA ± 0.5 mA
Electrical connection : +24 V = “+”, COM = “−”
Output sensitivity : See Ordering information on page 12
Max. dynamic range : 5 mA peak / output sensitivity

3-wire voltage transmission

Dynamic signal : Max. ± 5 V peak
Standing voltage : 7.5 V ± 0.2 V
Output sensitivity : See Ordering information on page 12
Output impedance : 750 Ω (3-wire configuration)
Max. dynamic range : 5 V peak / output sensitivity
