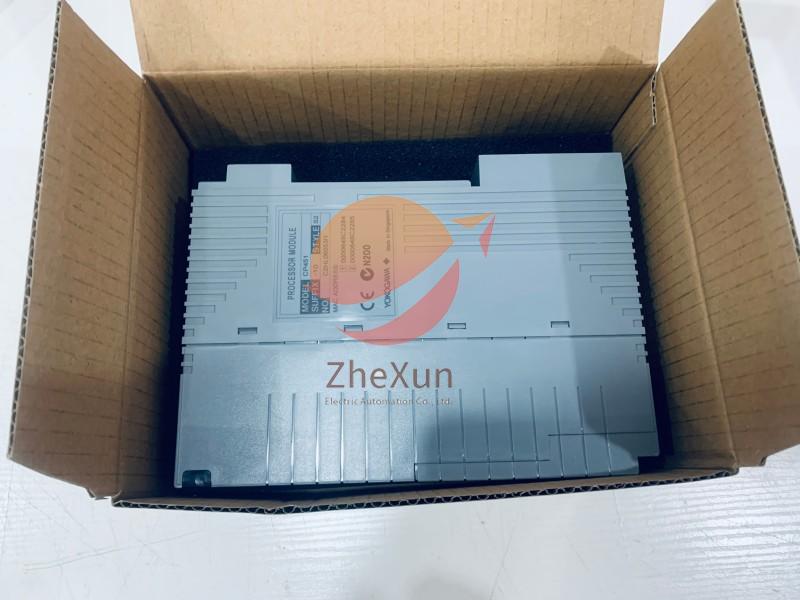

YOKOGAWA SCP451-11 PROCESSOR MOUDLE CPU
YOKOGAWA SCP451-11 PROCESSOR MOUDLE CPU 100% Brand New. 365 days warranty.
item no.:
CP451-10lead time:
2-3 work daysproduct orgin:
Japanshipping port:
Xiamen Chinapayment:
T/Tprice:
$999market price:
$999price range:
1-999/1$color:
Depends on the materialCondition:
NEWLimitations of Installation for AAT141
To keep the reference junction compensation accuracy, make sure to meet the following conditions. The pressure clamp terminal should not be affected by radiated heat, For details of the reference junction compensation accuracy, refer to “Analog I/O Modules” (GS33K50F60-50E)
Specifications for node only
• Do not install a heat-radiating unit beneath the AAT141 installed node.
• Do not install AAT141 in the place where airflow affects directly.
• Do not install an AAT141 next to the CP461 and CP451.
• Do not install AAT141 next to the bus interface modules, SB401,ANT502,ANT512 and EB501.
• The installable modules in the next to AAT141 are as follows. When installing other than following IOM, make an empty slot (one or more ) in each side. Installable modules: AAT141, AAT145, AAR181,AAR145, AAV141, AAV142, AAV542
If there is a fan in the upper space of the cabinet, install the module in a position that is 3 units (1 unit = 44.45 mm) lower than the fan.
• Do not install an AAT141 next to the CP461 and CP451.
• Do not install AAT141 next to the bus interface modules, SB401, ANT502, ANT512 and EB501.
• The installable modules in the next to AAT141 are as follows. When installing other than following IOM, make an empty slot (one or more ) in each side. Installable modules: AAT141, AAT145, AAR181, AAR145, AAV141, AAV142, AAV542
• When installing AAT141 to AFV40 or ACB51, it should be installed to the following positions (3, 4, 5, 7, 8, 9, 10) as shown in the figure below.
• At the positions of 6, 11 and 12, the heat-generating devices should not be installed.
• Moreover, the node that AAT141 is installed should not be placed above or under the node fan unit.
CP451 Field Control Unit (for FIO)
YOKOGAWA SCP451-11 PROCESSOR MOUDLE CPU 100% Brand New. 365 days warranty.
YOKOGAWA EB401-10 COMMUNICATION MODULE DCS CS-3000 NEW 100% Brand New. 365 days warranty.
YOKOGAWA PCB Card
YOKOGAWA AAI543-S00 Analog Output Module JAPAN MADE 100% Brand New. 365 days warranty.
YOKOGAWA ESB Bus Cable (36-36 pins)
YOKOGAWA CP345 CPU PROCESSOR MODULE JAPAN 100% Brand New. 365 days warranty.
YOKOGAWA PW482-10 Power Supply Module ORIGINAL JAPAN PW482 100% Brand New. 365 days warranty.
YOKOGAWA Base module
