GE Fanuc IC698CPE010 Processor Module CPU
GE Fanuc IC698CPE010 Processor Module CPU 100% Brand New. 365 days warranty.
item no.:
PL9700X11AXXXlead time:
in stockproduct orgin:
The USAshipping port:
Xiamenpayment:
T/TCondition:
NEW
Description
The EPM 9700 meter is equipped with extensive communication capabilities that allow it to speak with many different SCADA or other communication systems, simultaneously. The meter has 6 communication ports as a standard offering. These ports include 4 serial ports and 2 Ethernet-based communication ports. The Ethernet ports include an ST terminated fiber optic port and an RJ45 port. Both ports use separate IP addresses, so that they can run on simultaneous redundant networks.

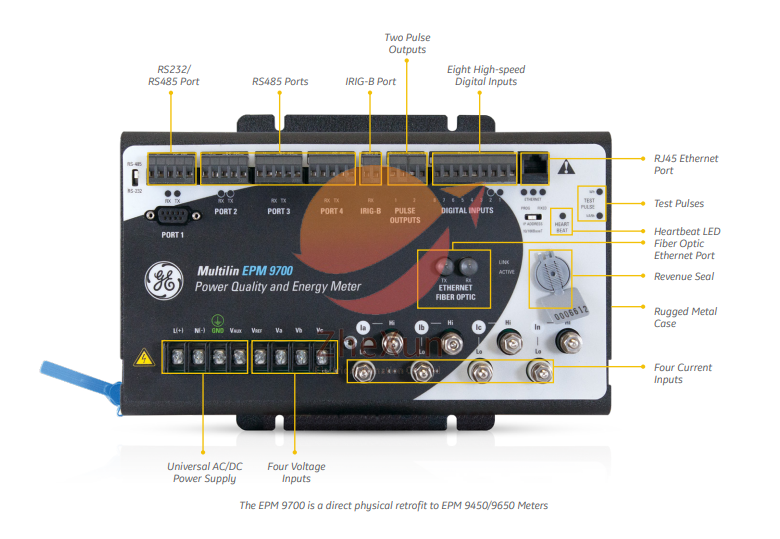

Details of Ports
• 6 standard Com ports
• 4 serial ports - RS485 (one of the ports is RS485/RS232 selectable)
• 2 independent Ethernet ports - RJ45 and Fiber Optic
• Modbus RTU, Modbus ASCII, Modbus TCP/IP, DNP 3.0 Level 2
communication
• All ports can be communicating simultaneously
• Each Ethernet port can be assigned a separate IP address
8 Built-in Digital High-speed Status Inputs
• Inputs automatically sense whether the circuit is externally wetted
• If externally wetted, input up to 150 VDC is accepted
• If internally wetted, the meter supplies the necessary voltage for
the control application
VAUX Input
• Neutral to ground or aux voltage readings
• Synchronizing schemes, for example, obtaining the frequency,
magnitude, and phase angle on both sides of a switch or between
generator and bus voltage
Two Standard Pulse Outputs
• Solid State, form-A, 35 ohm max on resistance
• 120 mA continuous, 350 mA max for 10 ms
• Peak voltage: 350 V DC
• Switching rate max: 10/s
• Support pulse-counting applications
